3M Thermocouple

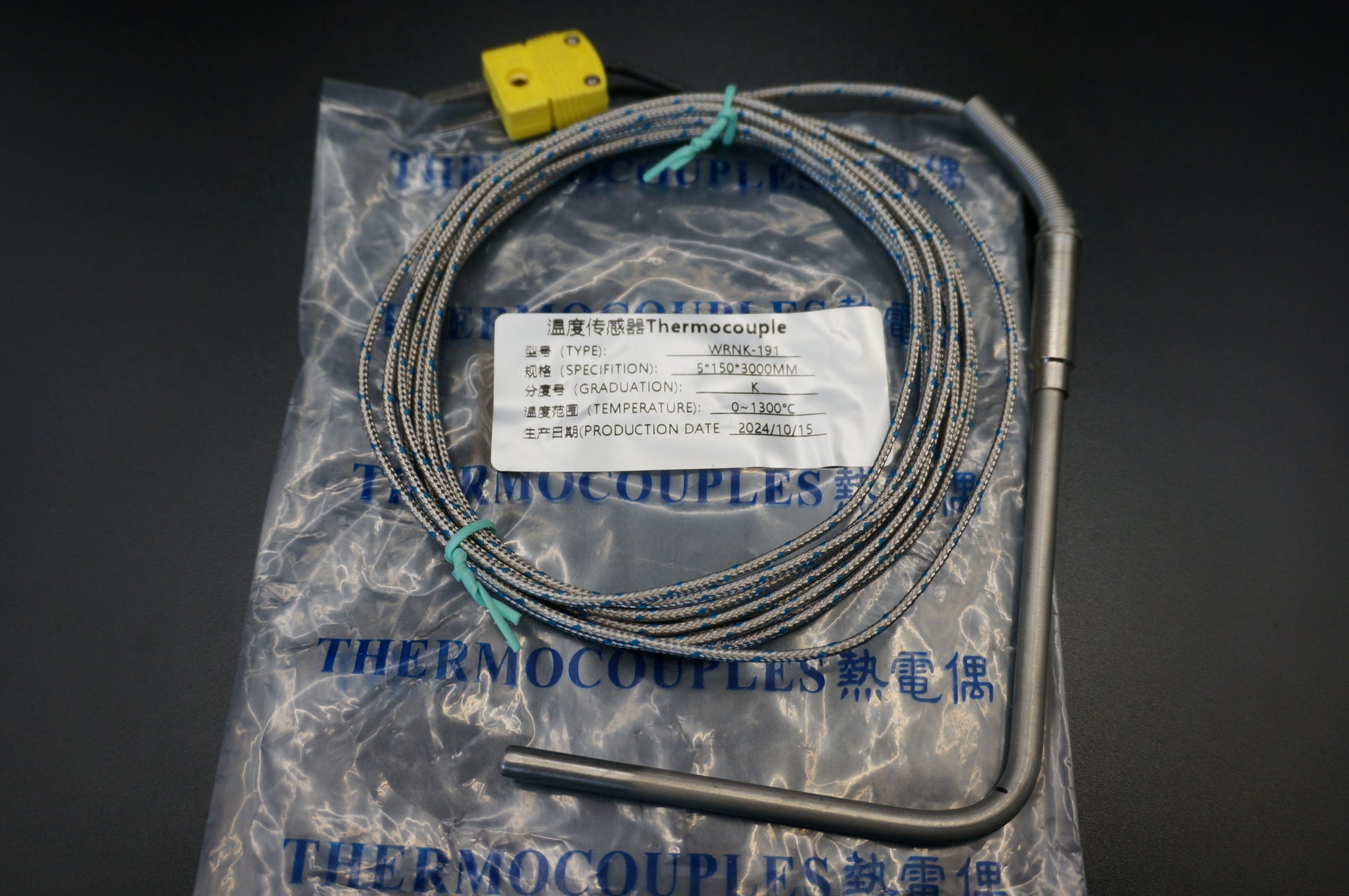

TC3M90 K-Type Thermocouple Probe – φ5×150mm with 3000mm Braided Lead

A Raya Industries Performance Product for the True Enthusiast

The TC3M90 K-Type Thermocouple is engineered for precision heat tracking in high-performance environments. Featuring a compact 90° bent probe and extended braided lead, it’s built to handle the demands of motorsport, dyno tuning, and industrial-grade thermal monitoring.

Specifications:

• Part Number: TC3M90

• Sensor Type: K-Type Thermocouple

• Probe Diameter: φ5mm

• Probe Length: 150mm with 90° bend

• Lead Length: 3000mm braided stainless steel

• Temperature Range: 0°C to 1300°C

• Connector: Standard yellow K-Type plug

• Tip Style: Non-exposed (grounded junction) for stable, interference-free readings

Performance Highlights:

• Fast thermal response for real-time data

• Durable stainless steel probe with compact 90° bend for tight-clearance installs

• Extended braided lead for flexible routing in high-temp zones

• Grounded tip minimises electrical noise and improves probe longevity

• Compatible with most temperature controllers and data loggers

Built for: Performance automotive setups, dyno environments, industrial furnaces, and any application where precision heat tracking is mission-critical.
